Highest efficient led grow light system for indoor growing
Flexible – Performance-Oriented – Future-Proof
The 2nd generation of the Q-series was developed to live-up to our reputation as the technological market leader and to extend that lead. For you as a user, this means maximum flexibility with the best system efficiency and usability.

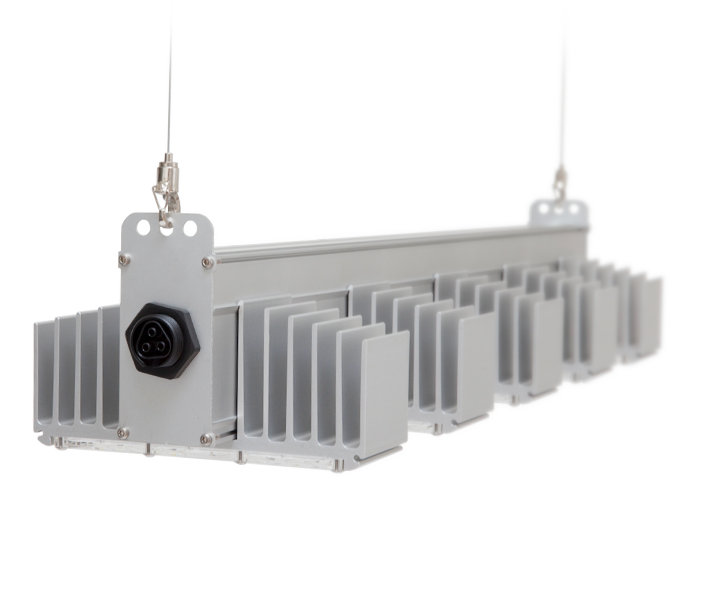

Each led grow light from the Q-Series consists of one or several light modules. These light modules have implemented the newest Osram 2mm2 Chip technology, which enables the generation of an optimized broadband light spectrum with an efficacy of 2,7µmol/J.
The secondary optics which guides 95% from all emitted photons directly to the cultivating area, protects the Led Chips from dust and dirt additionally. Dirt can be removed easily, and the light output maintains.
The optimised heat sink cools down the led chip to temperatures below 70°C and connects light engine and power distribution.
We give you the options,…
The Q-series models are designed so that the right solution is available for any mounting situation. For classic cultivation areas we offer an ECO solution or an EXPERT setup. That means you choose between maximum energy savings and cost efficiency, or maximum yield.
Options such as power boost or dimmer allow you to expand your system‘s range of performance or adapt it to new conditions. Every light in the Q-series is prepared for this, READY-TO-DIM and READY-TO-BOOST.
Of course, the lights can be daisy-chained to each other. Several lights can be powered by a single plug socket.
Each Q-series light can be kept state of the art cost effectively and while conserving resources simply by replacing the light modules. They are upgradable.
- 115 – 624 PPF*
- Broad spectrum, continuous light spectrum especially for fruit-forming plants
- Power consumption from 50 to 245 watts
- Power factor > 0.95
- Beam angle 90°
- Rectangular and homogeneous illumination of the cultivated area
- Passively cooled
- protection class IP40
- 3-year guarantee
- Modules can be exchanged at SANlight sales partners
- 90% light output after 100,000 hours
PREPARED FOR THE FUTURE…
All Q-Series Gen2 models are ready-todimm. This means that you can equip the lights subsequently with a dimmer. This is simply plugged into the slot provided on the lamp.
The simplest dimmer variant is the M-Dim. You connect the dimmer module to your light and can then dim each individual light via a magnetic switch. In addition, you can activate a sunrise simulation.
No communication via a network, simple to use, cost-effective and reliable.
The Bluetooth dimmer is also simply plugged into the light. You connect to your illumination system through your smart device (mobile phone, tablet, etc.). All lights can be addressed together(cluster) or each light separately. Functions such as simple dimming, daytime-dependent dimming, etc. can be set via the app. Easy to use and inexpensive installation for large systems.
READY TO BOOST
If you, as the owner of a model of the Q-Series Gen2, need more power, for example, because your growing conditions are changing (larger growing cabinet, etc.), a SANlight authorised dealer
can boost the light. This means you get 10% more light output.
The lamp can be kept state of the art with the possibility of an upgrade. Your official SANlight dealer can easily replace the light modules with the latest generation of modules. This offers a cost-effective
and not least resource-saving alternative to a new purchase.
WE HAVE THE SOLUTION,
YOU HAVE THE CHOICE
For standardised cultivation areas we offer an ECO setup as well as an EXPERT setup. You decide what is most important to you…
In the design of these setups, we have taken care to achieve the same yield as with corresponding sodium vapour lamps while minimising power consumption. An average 600W sodium vapour lamp emits about 840μmol/s. An area of e.g. 1.44m² is thus exposed to 580μmol/m²/s.
A SANlight Q4WL Gen2 emits 416μmol/s. If 2 units are used on the same area (1.44 m²), this system achieves an illumination density of 580 μmol/m²/s. The same yields with better quality can be expected
and you save about 50% on energy costs. In terms of handling, these systems are forgiving and easy, because the plants are not driven to their limits.
Eco Setup Overview
- Minimum power consumption, with similar yield to a high pressure sodium lamp
- Low acquisition costs
- No dimmer needed
The focus here is clearly on maximising harvest. While with a 600W sodium vapour lamp 840μmol/s photons illuminate your plants, with 2 Q5W units, a photon flux of 1025μmol/s is generated. This means that the illumination density is 25% higher. Nevertheless, even with the Expert setup, you can calculate an energy saving of about 35%. With appropriate gardening skills, the yields will be better both qualitatively and quantitatively. The intense light drives the plants to their limits and requires proper handling by the gardener. We recommend using this system with dimming, and only applying the
full performance of your system in the last few weeks.
Expert Setup Overview
- Maximise your harvest in quality and quantity
- Higher acquisition costs
- Photosynthesis at the limit
- Dimmer recommended
- The quality of your crop
- The quantity of your crop
- homogeneity and Quality of your crop over the cultivation area
- your cultivation area (usage in multilayer systems)
- your flexibility (usable as main light source or as additional light source)
- the productivity of your company
- your energy costs
- your costs for maintanance
- temperature inside your cultivation room
- your risk
- water consumption of plants
- time to harvest
